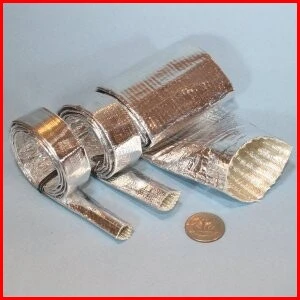

Aluminized PET Film Coated Fiberglass Heat Reflective Sleeve

High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing

450°F / 232°C Continuous Exposure / 1000°F / 537°C Peak Exposure

This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

The sleeve slides easily over wires, cables and hoses due to the smooth inner fiberglass surface.  This aluminized sleeve reflects more than 95% of the radiant energy that hits its surface, keeping the underlying cables, hoses and wires cool.  Available in sizes from 1/2" through 2.5" ID.

This sleeve is also used extensively for automotive and truck under-hood engine compartment applications.

Aluminized PET coated fiberglass is suitable for applications where flexing is anticipated and may be more suitable to aluminum foil coated sleeves as the aluminum foil in flexing applications can crack and peel.

heat reflecting sleeve for wire cable hose protection

To buy this product now on-line, use the shopping cart product selector below.  Any Problems?... Call 610-906-3549 for immediate help - Then press 1 for the Order Desk or 2 for Technical Support.
Heat Reflective Sleeve
FlameShield Aluminized PET film Coated Fiberglass Sleeve.

Heat reflecting to protect wires, cable and hoses. Particularly suited for under-hood engine compartment use.
$ 0.00
Part Numbers:
S-FG-ALM-0.250-M006-04-B, S-FG-ALM-0.375-M010-06-B, S-FG-ALM-0.500-M013-08-B, S-FG-ALM-0.625-M016-10-B, S-FG-ALM-0.750-M019-12-B, S-FG-ALM-0.875-M022-14-B, S-FG-ALM-1.000-M025-16-B, S-FG-ALM-1.250-M032-20-B, S-FG-ALM-1.500-M038-24-B, S-FG-ALM-1.750-M044-28-B, S-FG-ALM-2.000-M051-32-B, S-FG-ALM-2.500-M064-40-B, S-FG-ALM-3.000-M076-48-B

S-FG-ALM-0.25-M006-04-S, S-FG-ALM-0.37-M010-06-S, S-FG-ALM-0.50-M013-08-S, S-FG-ALM-0.62-M016-10-S, S-FG-ALM-0.75-M019-12-S, S-FG-ALM-0.87-M022-14-S, S-FG-ALM-1.00-M025-16-S, S-FG-ALM-1.25-M032-20-S, S-FG-ALM-1.50-M038-24-S, S-FG-ALM-1.75-M044-28-S, S-FG-ALM-2.00-M051-32-S, S-FG-ALM-2.50-M064-40-S, S-FG-ALM-3.00-M076-48-S

S-FG-ALM-0.25-M006-04-F, S-FG-ALM-0.37-M010-06-F, S-FG-ALM-0.50-M013-08-F, S-FG-ALM-0.62-M016-10-F, S-FG-ALM-0.75-M019-12-F, S-FG-ALM-0.87-M022-14-F, S-FG-ALM-1.00-M025-16-F, S-FG-ALM-1.25-M032-20-F, S-FG-ALM-1.50-M038-24-F, S-FG-ALM-1.75-M044-28-F, S-FG-ALM-2.00-M051-32-F, S-FG-ALM-2.50-M064-40-F, S-FG-ALM-3.00-M076-48-F
