Main Form Products > Sleeve Groups > Heat Reflective

Aluminized PET Film Coated Fiberglass Heat Reflective Split Sleeve with adhesive closure strip - 4 foot / 121.9cm length

High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing

450°F / 232°C Continuous Exposure / 1000°F / 537°C Peak Exposure

This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

This aluminized PET film coated fiberglass split sleeve has an adhesive strip along one long edge to close the sleeve after installation.  This sleeve reflects more than 95% of the radiant energy that hits its surface, keeping the underlying cables, hoses and wires cool.

Available in sizes from 1/4" through 2" ID.  The length of these sleeves is 4 feet / 121.9 cm .

This sleeve is also used extensively for automotive, construction, mining and truck under-hood engine compartment applications.  The fiberglass substrate also has a PET inserted filament included with the fiberglass fibers, resulting in a sleeve that resists crushing and actively pushes back against compression.

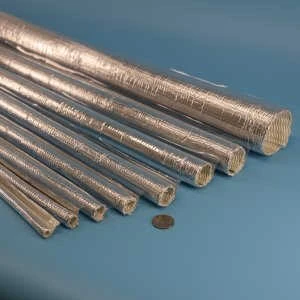

Aluminized heat reflecting split sleeve with adhesive closure

To buy this product now on-line, use the shopping cart product selector below.  Any Problems?... Call 610-906-3549 for immediate help - Then press 1 for the Order Desk or 2 for Technical Support.
Heat Reflective Sleeve
FlameShield Aluminized PET film Coated Fiberglass Split Sleeve with acrylic self adhesive closure strip - 4 foot stick. Price is per stick (4 foot length).
$ 0.00
Part Numbers:
S-FG-AL-SPLIT-ACL-0.250-M006-04, S-FG-AL-SPLIT-ACL-0.375-M010-06, S-FG-AL-SPLIT-0.500-M013-08, S-FG-AL-SPLIT-0.625-M016-10, S-FG-AL-SPLIT-0.750-M019-12, S-FG-AL-SPLIT-1.000-M025-16, S-FG-AL-SPLIT-1.250-M032-20, S-FG-AL-SPLIT-1.500-M038-24, S-FG-AL-SPLIT-2.000-M051-32
