Sleeve for Wire Protection - AWG sized

AWG size sleeve is used to protect wires and small wiring bundles and cables.

Avaiable in E-glass and S-glass.

Available as plain sleeves, heat treated sleeves, saturated sleeves (acrylic saturant - available in colors), and coated sleeves with coatings of silicone rubber, viton and acrylic.


Fiberglass with Viton Coating

Small Diameter Firesleeve AWG size

Fiberglass with Acrylic Coating

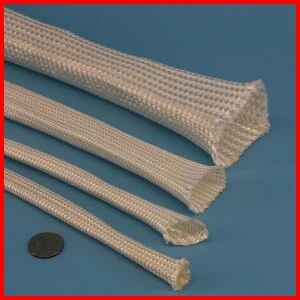

Braided E Type & S Type Fiberglass Sleeve - Small Diameter AWG Size Wire Protection - Premium Grade


High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

This high temperature and heat resistant fiberglass sleeve is a braided fiberglass (fibreglass / glassfibre) sleeve, fabricated from high quality type E Type or S Type fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. It provides excellent protection for wires.

This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents.  It is highly flexible and conformable.  The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.  100% Asbestos free.


E Glass Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair.  Good resistance to most alkalis.
Breaking Elongation:  4.81% Std.  4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TE
Fiberglass Braided Sleeve Premium Grade Wire size Protection

Braided Fiberglass Sleeve - Small Diameter AWG Sized Premium Grade - Thin Wall


High Temperature, Heat & Flame Resistant and Thermal Insulating - .006" & .008" Wall Thickness

1200°F / 648°C Continuous Exposure: Higher Intermittent

This high temperature and heat resistant fiberglass sleeve is a braided fiberglass (fibreglass / glassfibre) sleeve, fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. It provides excellent protection for wires.

This sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents.  It is highly flexible and conformable.  The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18. Asbestos free.


Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair.  Good resistance to most alkalis.
Breaking Elongation:  4.81% Std.  4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TE
Fiberglass Braided Sleeve Thin Wall Premium Grade Wire size Protection

Braided Fiberglass Sleeve - Small Diameter AWG Wire Sized Protection - Premium Grade - Thick Wall Heavy Duty


High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

This high temperature and heat resistant fiberglass sleeve is a braided fiberglass (fibreglass / glassfibre) sleeve, fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. It provides excellent protection for wires.

This high temperature sleeve / heat resistant sleeve resists most acids and alkalis and is unaffected by most bleaches and solvents.  It is highly flexible and conformable.  The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.  100% Asbestos free.

This is the thickest wall, heavyist AWG wire size sleeve available - plain or with binders.


Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair.  Good resistance to most alkalis.
Breaking Elongation:  4.81% Std.  4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TE
Fiberglass Braided Thick Wall Sleeve Premium Grade Wire size Protection

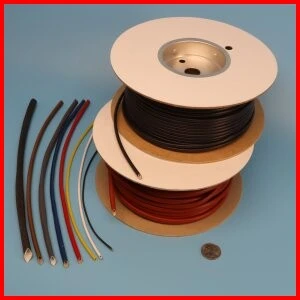

Braided Fiberglass Sleeve with VITON® coating for small diameter wire and cable protection


High Temperature, Heat & Flame Resistant and Thermal Insulating

428°F / 220°C Continuous Exposure: Higher Intermittent

FlameShieldä Viton® 231 coated fiberglass sleeve is designed as a primary insulation sleeve for protecting small diameter wire, cable, lines, hose, and pipe from high temperature, flame and environmental contamination.  Recognized by UL / CSA for 220°C, 7000V service, and complies with VW-1 flammability requirements.  Conforms to, and is listed on the QPL for MIL-I-3190/9.  Available in 3 grades: NEMA Grade A-1, B-1 and C-1.

Extremely flexible and easily installed.  Used in electrical apparatus as a primary or secondary wiring insulation.  Suitable for use in silicone free requirement environments.  Resistance to solvents, both aromatic and aliphatic; fuels, including JP-5; and oils, including Skydrol.

The inner braid is very fine and dense, and along with the precision Viton® 231 coating, this is the toughest cut and abrasion resistant flexible sleeve we have available for wire, cable and hose protection.

Also provides protection from ozone, UV and abrasion. This product is UL/CSA approved and used on a wide variety of equipment such as fixtures, appliances and motors for wiring protection.

This sleeve is available only in white, black and natural (dark tan).  This sleeve is only available in full spool lengths shown in the catalog.

Fiberglass braided sleeve with VITON coating high temperature heat resistant wire protection

Braided Fiberglass Sleeve with Acrylic coating for small diameter wire and cable protection


High Temperature, Heat & Flame Resistant and Thermal Insulating

428°F / 220°C Continuous Exposure: Higher Intermittent

FlameShieldä acrylic coated fiberglass sleeve is designed as a primary insulation sleeve for protecting small diameter wire, cable, lines, hose, and pipe from high temperature, flame and environmental contamination.  Recognized by UL / CSA for 220°C, 7000V service, and complies with VW-1 flammability requirements.  Conforms to, and is listed on the QPL for MIL-I-3190/9.  Available in 3 grades: NEMA Grade A-1, B-1 and C-1.

Extremely flexible and easily installed.  Used in electrical apparatus as a primary or secondary wiring insulation.  Suitable for use in silicone free requirement environments.  Resistance to solvents, both aromatic and aliphatic; fuels, including JP-5; and oils, including Skydrol.

The inner braid is very fine and dense, and along with the precision Acrylic coating, this is the toughest cut and abrasion resistant flexible sleeve we have available for wire, cable and hose protection.

Also provides protection from ozone, UV and abrasion. This product is UL/CSA approved and used on a wide variety of equipment such as fixtures, appliances and motors for wiring protection.

This sleeve is available in a variety of colors. This sleeve is only available in full spool lengths shown in the catalog.

Fiberglass braided sleeve with acrylic coating high temperature heat resistant wire protection

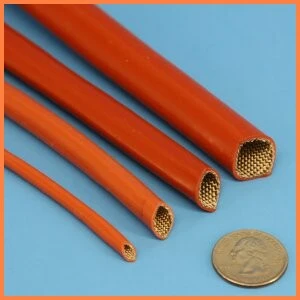

Silicone Rubber Coated Fiberglass Sleeve for AWG sized Wire Protection


High Temperature, Heat & Flame Resistant Protection for Wire, Cables, Hoses and Tubing

464°F / 240°C Continuous Exposure:  Higher Intermittent

FlameShieldä thin-wall high temperature, heat, flame and fire resistant firesleeve is the perfect choice for protecting small diameter wires and cables from exposure to high temperature and environmental conditions.  The thin-wall fiberglass substrate and smooth silicone rubber on this firesleeve sheds light molten metal splash, slag, welding splatter, electrical or grinding sparks, solder drips and contamination.  Also provides protection from ozone, UV and light abrasion. This product is UL/CSA approved and used on a wide variety of equipment such as fixtures, appliances and motors for wiring protection.

This sleeve is available only in oxide-red and black.  Supplied in spool lengths; some sizes may be available in by-the-foot lengths - please contact our order desk to enquire.



Heavy wall sleeve is only available in oxide-red color:

Download Catalog Page
Small Diameter Firesleeve AWG wire protection
Firesleeve small diameter heavy wall awg wire protection
