Main Form Products > Sleeve Groups > > Sleeves - Firesleeve Group
Firesleeve with Stainless Steel Metal Snap Closure
High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing with Metal Snap Closure
500°F / 260°C Continuous Exposure
800°F / 426°C Short Term Exposure
2200°F / 1205°C Excursions
3000°F / 1650°C Peak Exposure
SnapSleeveä high temperature, heat, flame, pyro and fire resistant sleeve and jacket provides molten splash & weld splatter protection to wires, cables, hoses, tubes and pipes. SnapSleeveä provides a field installable protection sleeve utilizing metal stainless steel snaps instead of hook and loop closure strips.
SnapSleeveä with its metal closures can endure the most demanding of liquid metal splash and heavy weld splatter, and may be more suitable than a hook and loop closure for some applications. This sleeve also provides energy savings and personnel protection.

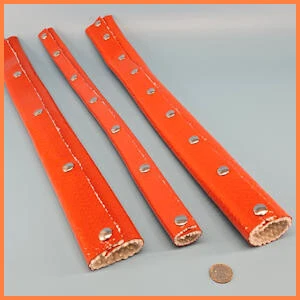

Snaps are installed at 6 inch spacing along the sleeve. 4 inch and 3 inch spacing is also available - and is particularly useful to keep the flap of the sleeve closed on installations that involve curves or movement. Additional snaps may easily be field installed to allow for unique bends or extra closure protection. Snaps and portable installation tools are available from us.
Available in sizes from 1" through 12" ID. Other larger sizes available. For sizes larger than 5-1/2 inches, a seam of overlapped firefleeve that is sewn togther is present.
Meets 14 CFR 25.869(a)(4); Appendix F, Part 1(b)(7) (60-degree flammability Test).

Part numbers:
S-FS-SNAP-M013-08, S-FS-SNAP-M015-09, S-FS-SNAP-M016-10, S-FS-SNAP-M019-12, S-FS-SNAP-M022-14, S-FS-SNAP-M025-16, S-FS-SNAP-M029-18, S-FS-SNAP-M032-20, S-FS-SNAP-M035-22, S-FS-SNAP-M038-24, S-FS-SNAP-M041-26, S-FS-SNAP-M044-28, S-FS-SNAP-M048-30, S-FS-SNAP-M051-32, S-FS-SNAP-M057-36, S-FS-SNAP-M064-40, S-FS-SNAP-M067-42, S-FS-SNAP-M070-44, S-FS-SNAP-M073-46, S-FS-SNAP-M076-48, S-FS-SNAP-M083-52, S-FS-SNAP-M089-56, S-FS-SNAP-M095-60, S-FS-SNAP-M102-64, S-FS-SNAP-M114-72, S-FS-SNAP-M127-80, S-FS-SNAP-M133-84, S-FS-SNAP-M140-88, S-FS-SNAP-M146-92, S-FS-SNAP-M152-96, S-FS-SNAP-M159-100, S-FS-SNAP-M165-104, S-FS-SNAP-M171-108, S-FS-SNAP-M178-112, S-FS-SNAP-M184-116, S-FS-SNAP-M191-120, S-FS-SNAP-M197-124, S-FS-SNAP-M203-128, S-FS-SNAP-M210-132, S-FS-SNAP-M216-136, S-FS-SNAP-M222-140, S-FS-SNAP-M229-144, S-FS-SNAP-M235-148, S-FS-SNAP-M241-152, S-FS-SNAP-M248-156, S-FS-SNAP-M254-160, S-FS-SNAP-M260-164, S-FS-SNAP-M267-168, S-FS-SNAP-M273-172, S-FS-SNAP-M279-176, S-FS-SNAP-M286-180, S-FS-SNAP-M292-184, S-FS-SNAP-M298-188, S-FS-SNAP-M305-192
