Main Form Products > Tapes > Tapes: Silicone - Aviation / Military
General Electric Transportation Systems EMD8355873 Silicone Rubber Self Fusing Tapes
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShieldä rectangular profile tapes meeting GE General Electric Transportation Systems EMD 8355873 specification are used for a variety of critical electrical wiring and cable splicing and protection jobs.
EMD 8355873 tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
This tape is specified to be oxide-red, but black is also available if preferred. This tape has a glass sinusoidal reinforcement to limit its elongation.
EMD 8355873 provides superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value.
This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
To buy this product now on-line, use the shopping cart product selector below.
Any Problems?... Call 610-906-3549 during business hours for immediate help - Then press 1 for the Order Desk or 2 for Technical Support.

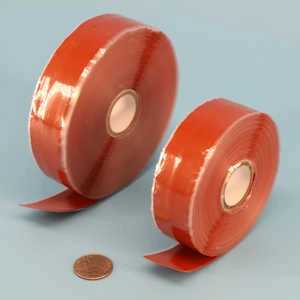

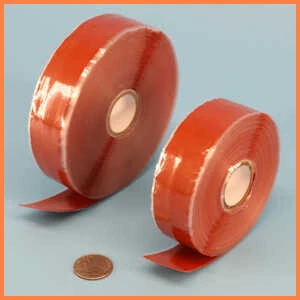

Silicone Rubber Self Fusing Tape
FlameShield High Temperature Silicone Rubber Self Fusing Electrical Tape meeting General Electric Transportation Systems Junction Insulation Tape specifications.
$ 67.29
Add
Silicone Rubber Self Fusing Tape
Add Certificate of Conformance and Test Reports if required to your order
$ 0.00
Add
If you require a CofC or Test Reports, please ensure you select them as well in the cart above and add them to your order.
