Main Form Products > Tapes > Tapes: Heat Reflective

Heat Reflecting Aluminized Fiberglass Tape Summary Page

Heat Reflecting Tapes - High Temperature & Heat Resistant


Aluminum Foil Coated Fiberglass with adhesive
Aluminized PET Film Coated Fiberglass with adhesive
Aluminum Foil with adhesive

1200°F / 648°C Continuous Exposure: Higher Intermittent

DeltaGlassä radiant heat reflective tapes protects wiring, cables and hoses from radiant heat sources in industrial settings and also for automotive and mobile equipment under-hood applications.

For the tapes that have a fiberglass base - the base fabric is rated to 1200F, while the aluminum foil, aluminized PET film, or stainless steel foil is adhesively callandered to the base fabric.  The adhesive is rated to 450F before it begins to vaporise and "smoke-off".

Heat reflecting tapes reflect 95 to 98% of the infrared heat striking the tape surface.


A-A-59258 MIL-T-47014 FAR 25.853 Radiant Heat Reflective Aluminum Foil Tape - with PSA adhesive


Heat & Flame Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection

1000°F / 537°C Peak Exposure; 450°F / 232°C Continuous Exposure

This high temperature tape is heat resistant and heat reflective and meets A-A-59258,  MIL-T-47014 and 25.853(a) specifications.  CofC available.

The highly polished aluminum foil is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint.

Silicone PSA adhesive.

Available in widths from 1/2" through 4" wide,

A-A-59258 MIL-T-47014 Aluminum Foil Tape Heat Reflecting with PSA

MIL-P-23397B1 Radiant Heat Reflective Aluminum Foil Tape - with PSA adhesive


Heat & Flame Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection

1000°F / 537°C Peak Exposure; 450°F / 232°C Continuous Exposure

This high temperature tape is heat resistant and heat reflective and meets MIL-P-23397B1 specifications.  CofC available.

The highly polished aluminum foil is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint.

Available with standard non-conductive acrylic adhesive or with conductive acrylic PSA adhesive.

Available in widths from 1/2" through 4" wide,

A-A-59258 MIL-T-47014 Aluminum Foil Tape Heat Reflecting with PSA

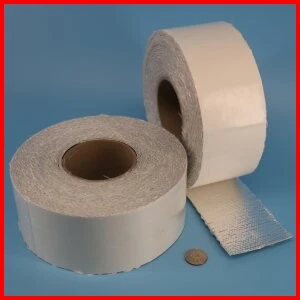

Aluminum Foil Coated Fiberglass Tape Heat Reflecting

Radiant Heat Reflective Aluminum Foil Tape - with silicone high temperature PSA adhesive


Heat & Flame Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection

1000°F / 537°C Peak Exposure; 450°F / 232°C Continuous Exposure

This high temperature tape is heat resistant and heat reflective and meets A-A-59258 and MIL-T-47014 specifications.  CofC available.

The highly polished aluminum foil is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint.

Silicone PSA adhesive.

Available in widths from 1/2" through 4" wide,

Download PDF Catalog Page with Pricing (CALL)
Aluminized PET Film Coated Fiberglass Tape Heat Reflecting

Radiant Heat Reflective Aluminized PET Film Coated Fiberglass Tape - with PSA adhesive


Heat & Flame Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection

1000°F / 537°C Peak Exposure; 450°F / 232°C Continuous Exposure

This high temperature tape is heat resistant and heat reflective. It includes self adhesive (with backing paper) on the side opposite of the aluminized film.

The highly polished aluminized PET film coating reflects radiant heat and is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint..

This tape is suited for applications involving regular repeated movement, such as a bellows or cable track system.

These heat reflective materials generally reflect 95 to 98% of the infrared heat striking its surface.

Heat Reflecting Sleeve Forming Tape - Aluminized PET Film Coated Fiberglass - with PSA adhesive strips on both sides


Heat Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection.

450°F / 232°C Continuous Exposure; 1000°F / 537°C Peak Short Term Exposure

This tape is heat resistant and heat reflective. It includes self adhesive side strips allowing the tape to form either an attached sleeve or a free floating sleeve for wire, cable and hose protection.

The aluminized PET film coating on the tape reflects radiant heat and is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint.

The PET film is laminated to a fiberglass tape, with an exposed edge on each side of the fiberglass having an adhesive (protected by a release liner).  The adhesive strip on each side of the tape is 0.3" wide.

This tape is suited for applications involving regular repeated movement, such as a bellows or cable track system, festoon, etc.

Aluminized PET Film Coated Fiberglass Sleeve Forming Tape Heat Reflecting
Stainless Steel Foil Coated Fiberglass Tape

Radiant Heat Reflective Stainless Steel Foil Coated Fiberglass Tape


Heat & Flame Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection

1000°F / 537°C Peak Exposure; 450°F / 232°C Continuous Exposure

This high temperature tape is heat resistant and heat reflective.

The highly polished stainless steel foil coating reflects radiant heat and is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint.

The tape is slit from 21oz foil coated fiberglass fabric. The foil is stiff, allowing the tape to hold its form; but it also creases.

These heat reflective materials generally reflect 95 to 98% of the infrared heat striking its surface.

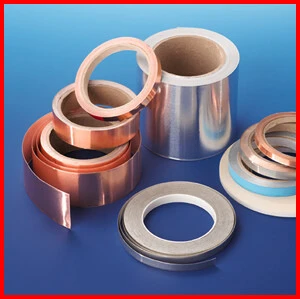

Copper Foil Adhesive Tape

Radiant Heat Reflective Aluminum Foil Tape with High Temperature Acrylic Adhesive


Heat & Flame Resistant & Radiant Heat Reflective for wire, cable, hose and tubing protection

1000°F / 537°C Peak Exposure; 450°F / 232°C Continuous Exposure

This high temperature tape is heat resistant and heat reflective.

The highly polished aluminum foil tape reflects radiant heat and is an excellent choice for the protection of industrial wires, cables, hoses (hydraulics), pipes, tubing and equipment that is in close proximity to intense radiant heat sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma, engine exhaust manifolds, and for reflecting solar glint.

Reflects 95 to 98% of the infrared heat striking its surface.  Tapes are available in sizes from 1/4" through 40" wide.

.003" thickness aluminum foil with .002" thickness acrylic adhesive.  The acrylic adhesive will smoke off at temperatures above 325F/162C; the aluminum will melt at 1162F/627C.

Roll length is 60 yards / 180 feet.

Used for EMI protection, plating and paint masking, provides a non-permeable waterproof/vapour/air barrier.
