Abrasion and Wear Protection Sleeves for Wire, Cable and Hoses


375°F / 190°C Continuous Exposure: Higher Intermittent

ScuffSleeveä abrasion resistance sleeve for hoses and cables that are moved regularly or flex in operation can be provided by using ScuffSleeveä, available in 7 continuous sleeves (braided and woven) and 4 retrofit sleeves with hook and loop closure.  These sleeve are available in bulk and shop spools of various standard lengths (see catalog pdf for information of the available lengths).

These sleeves are sold in 50, 100 and 150 foot increments. Available in standard sizes; larger or custom sizes can be easily fabricated.  Helps to organize and bundle hoses and cables. Excellent abrasion, scuff and wear resistance.
Braided and Woven Sleeves:

  • .02" filamant size nylon braided sleeve
  • .05" filament size nylon braided sleeve
  • Nylon 6 Standard Woven Sleeve
  • Nylon 6 MIL Spec Woven Sleeve
  • Nylon 6 MIL Spec Heavy Duty Woven Sleeve
  • Nylon 6 Heavy Duty Hi-Flex .045" wall thickness woven sleeve
  • Nylon 6 Heavy Duty Pro .08" wall thickness woven sleeve

Sleeve with Hook and Loop Closure:

  • 1050 Dernier Nylon
  • 1050 Dernier Heavy Duty Nylon with 1.5oz Urethane Coating
  • 1000 Dernier HD Nylon with 7oz Urethane Coating
  • 1000 Dernier with PVC coating
  • Nylon with Neoprene coating weld shield
  • Fiberglass with Neoprene coating weld shield

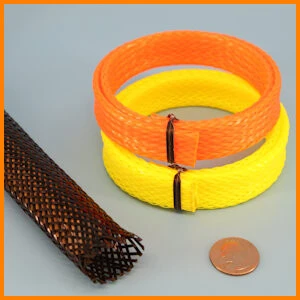

ScuffSleeveä Nylon MonoBraid abrasion resistance sleeve for protection of hoses and cables that are moved regularly or flex in operation.

Two versions of the sleeve are available: .020" round filament (2500 abrasion cycle rated) and .050" flattened filament (4400 abrasion cycle rated).

Available in bulk spool lengths and smaller shop spool lengths.

Nylon Braided Filament Abrasion Blowout Protection Sleeve for Hydraulic Hoses Lines

ScuffSleeveä nylon abrasion resistance sleeve for hoses and cables that are moved regularly or flex in operation.

The standard sleeve is fabricated from a tight and dense weave of nylon, with a high denier count of 1050.  Often referred to as "ballistic Nylon".

Available in 75, 150 and 300 foot lengths.

Nylon Braided Abrasion Blowout Protection Sleeve for Hydraulic Hoses Lines

ScuffSleeveä abrasion, wear, cut and puncture resistant sleeve for hoses and cables that are moved regularly or flex in operation or in vulnerable applications such as mobile construction equipment can be provided protection by using ScuffSleeveä.

This sleeve is fabricated from a tight and dense weave of nylon 6-6, that conforms to ISO 6945 and MSHA for blowout protection.

Can be cut with heavy duty shears or heat knife.  High wear resistant sleeve with 3500 abrasion cycle rating.

Nylon Abrasion Protection Sleeve MIL spec

ScuffSleeveä abrasion, wear, cut and puncture resistant sleeve for hoses and cables that are moved regularly or flex in operation or in vulnerable applications such as mobile construction equipment can be provided protection by using ScuffSleeveä.

This sleeve is fabricated from a tight and dense weave of nylon 6-6, that conforms to ISO 6945 and MSHA for blowout protection.

Can be cut with heavy duty shears or heat knife.

Nylon Heavy Duty Abrasion Protection Sleeve

ScuffSleeveä abrasion, wear, cut and puncture resistant sleeve for hoses and cables that are moved regularly or flex in operation or in vulnerable applications such as mobile construction equipment can be provided protection by using ScuffSleeveä.

Thickest wall available - .045" or .080"

Can be cut with heavy duty shears or heat knife.

Nylon Abrasion Protection Wear Resistant Sleeve Thick Wall
Abrasion Protection Sleeve with Hook & Loop Closure
Nylon Abrasion Protection Sleeve Hook Loop Closure
Abrasion Protection Sleeve with Hook Loop Closure
Wear Abrasion Protection Sleeve with Velcro

375°F / 190°C Continuous Exposure: Higher Intermittent

Custom fabricated sleeve with hook and loop closure, available in 4 versions:

Light Duty - 600 Denier Nylon with polymer coating
Meets MIL-C-83489, FED-STD-191A, MIL-STD-810F.  Tested to ISO 6945

General Purpose - 1050 Denier "Ballistic" Nylon with 1.7 oz urethane water-proofing coating on one side
Tested to ISO 6945

Medium Duty - 1000 Denier HD Nylon (10.5oz) with 4 oz urethane water-proofing coating on one side
Meets MIL-C-83489, FED-STD-191A, MIL-STD-810F.  Tested to ISO 6945

Heavy Duty - 1500 Denier XHD Nylon 40oz material with heavy polymer coating
Meets ISO 6945. Meets MSHA IC289


ScuffSleeveä abrasion, wear, cut and puncture resistant sleeve for hoses and cables that are moved regularly or flex in operation or in vulnerable applications such as mobile construction equipment can be provided protection by using ScuffSleeveä.

This sleeve is fabricated from a tight and dense weave of nylon 6-6, that conforms to ISO 6945 and MSHA for blowout protection.

Can be cut with heavy duty shears or heat knife.

Summary of all abrasion protection sleeves with hook/loop closure for non welding applications:


ScuffSleeveä Nylon with Neoprene coating sleeve with hook and loop closure protects cables and hoses from weld splatter and drag abrasion.

  • 1000 Denier Cordura with high flame retardant neoprene coating.
  • Meets MIL-C-20696E, Type 2 Class 1.
  • Construction Equipment, Drill Rigs, Mobile Welding.
  • Excellent UV protection: Meets EN13758-1.
  • Meets ISO 6945 for drag abrasion.
  • Non wicking, Excellent puncture and tear resistant.


Welding and Abrasion Protection Sleeve with Hook Loop Closure

ScuffSleeveä Fiberglass with Neoprene coating sleeve with hook and loop closure protects cables and hoses from weld splatter and drag abrasion.  The fiberglass base fabric allows for a higher level and more intense exposure to weld splatter and sparks than the nylon version of the sleeve is capable of withstanding.

  • Fiberglass base fabric with high flame retardant neoprene coating.
  • Excellent chemical resistance.
  • Construction Equipment, Drill Rigs, Mobile Welding.
  • Excellent UV protection: Meets EN13758-1.
  • Non wicking, Excellent puncture and tear resistant.
  • Best performance for vertical and inclines up to 15 degrees.
  • For higher horizontal weld splatter capability use our silicone rubber coated sleeve.

Fiberglass Heavy Duty Weld and Abrasion Protection Sleeve with Hook Loop Closure

ScuffSleeveä abrasion resistance sleeve for SPF Spray Foam hoses provides abrasion and wear resistance to SPF hoses being dragged over construction sites and debris.  An insulated version provides freeze protection for harsh winter use environments.

Fabricated from a heavy duty ballistic nylon with an easy to install and remove velcro hook and loop closure.

SPF Spray Foam Thermal and Abrasion Protection Sleeve with Hook Loop Closure
Nylon with Kevlar Liner Braided Abrasion Blowout Protection Sleeve for Hydraulic Hoses Lines
Nylon and Kevlar Abrasion Protection Blowout Protection Sleeve

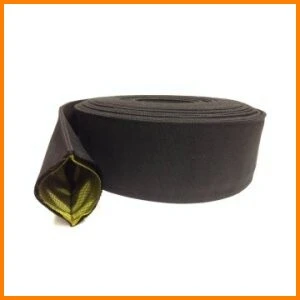

SuperGuardä nylon abrasion resistance sleeve with Kevlar lining for blowout protection of hydraulic hoses.

Tested by the Fluid Power Institute; also meets ISO 3457, ISO 4413, MDG41. Exceeds EN982 ISO norm 833 EN414.

Available in 100 foot lengths.
