Hose - Water Applications - Summary
Hose - Water - NBR Suction - up to 50 PSI
Heavy duty all weather suction hose for general water, wastewater, septic and manure application.
Service life varies with media being conveyed.
PVC helix prolongs hose life over rough surfaces.
Highly flexible, lightweight and floats.
Tech Data:
Construction: NBR/PVC tube with a PVC helix
Working Pressure: Up to 50 PSI for smallest size, 23 PSI for largest size
Safety Factor: 3:1
Temperature: -40F to 140F
Vacuum Rating: 29.8 in/HG
Hose - Water - Heavy Duty PVC Water Suction - up to 85 PSI
Premium heavy-duty for great durability.
Smooth bore allows full flow.
On sizes of 4" ID and above, the outer cover is convoluted for improved flexibility.
Tech Data:
Construction: Olive green PVC with a green PVC helix
Working Pressure: Up to 85 PSI for smallest size
Safety Factor: 3:1
Temperature: -4F to 150F
Vacuum Rating: 29 in/HG
Hose - Water - Heavy Duty Clear PVC Water Suction - up to 100 PSI
Premium heavy-duty for great durability.
Smooth bore allows full flow. Clear PVC allows visual conformation of water flow
On sizes of 4" ID and above, the outer cover is convoluted for improved flexibility.
Tech Data:
Construction: Clear PVC with a white PVC helix
Working Pressure: Up to 100 PSI for smallest size
Safety Factor: 3:1
Temperature: -4F to 150F
Vacuum Rating: 29 in/HG
Marking: HEAVY DUTY WATER SUCTION HOSE - <ID> - LOT

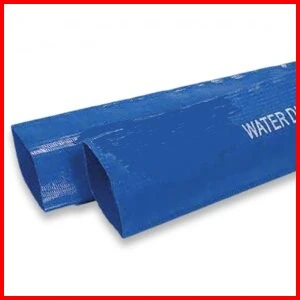

Hose - Water - Blue Lay-flat PVC Discharge - up to 90 PSI
Premium lightweight lay-flat PVC discharge hose that is easy to use and economical.
Excellent for pump discharge applications. Polyester reinforcement.
Standard lengths of 300 feet except 10" and 12" sizes where the standard length is 100 feet.
Tech Data:
Construction: Blue PVC with high tensile polyester reinforcement
Working Pressure: Up to 90 PSI for smallest size
Safety Factor: 3:1
Temperature: -10F to 120F
Marking: WATER DISCHARGE HOSE - <ID> - LOT
Hose - Water - Red Heavy Duty Lay-flat PVC Discharge - up to 150 PSI
Heavy duty lay-flat red PVC discharge hose designed for higher pressure applications.
Excellent for pump discharge applications. Polyester reinforcement.
Standard lengths of 300 feet.
Tech Data:
Construction: Red PVC with high tensile polyester reinforcement
Working Pressure: Up to 90 PSI for smallest size
Safety Factor: 3:1
Temperature: -10F to 120F
Marking: HEAVY DUTY WATER DISCHARGE HOSE - <ID> - LOT
Hose - Water - Mill Discharge - 150 PSI
Lightweight general purpose designed for open-ended discharge.
150 PSI working pressure.
Tech Data:
Construction: EPDM synthetic rubber with white 100% polyester jacket
Working Pressure: 150 PSI
Temperature: -58F to 176F
Marking: MILL DISCHARGE HOSE - <ID> - 150 PSI SERVICE PRESSURE
Hose - Water - Heavy Duty Orange PVC Water Suction - Up to 100 PSI
Premium heavy duty hose with excellent durability.
Smooth bore allows full flow.
Clear PVC allows visual confirmation of flow.
Tech Data:
Construction: Clear flexible PVC with synthetic yarn and orange PVC right-hand helix
Working Pressure: Up to 100 PSI for smallest sizes
Temperature: -4F to 150F
Marking: WATER SUCTION HOSE - <ID> - XXX PSI WP - LOT
Hose - Water - Heavy Duty Suction & Discharge - Up to 150 PSI
Premium heavy duty hose with great flexibility and excellent durability.
Lighter weight for easy handling.
Smooth bore allows full flow.
Tech Data:
Construction: Black, SBR/EPDM blend for both tube and cover, with green stripe on outer cover.
Safety Factor: 3:1
Working Pressure: 150 PSI
Vacuum Rating: 28 in/HG
Temperature: -40F to 180F
Marking: HEAVY DUTY WATER SUCTION & DISCHARGE HOSE - <ID> - XXX PSI WP
Hose - Water - Heavy Duty High Flexibility Suction & Discharge - Up to 150 PSI
Premium heavy duty hose with great flexibility and excellent durability.
Convoluted cover for extra flexibility.
Smooth bore allows full flow.
Tech Data:
Construction: Black, SBR/EPDM blend for both tube and cover, with green stripe on outer cover.
Safety Factor: 3:1
Working Pressure: 150 PSI
Vacuum Rating: 25 in/HG for smaller sizes; 20 in?HG for 10" and 12" sizes
Ends: Soft cuffs available on 6" and 8" sizes only
Temperature: -40F to 180F
Marking: HEAVY DUTY WATER SUCTION & DISCHARGE HOSE - <ID> - XXX PSI WP
Hose - Water - Medium Duty Soft Wall 2-ply High Discharge - Up to 150 PSI
Similar to a lay-flat hose but with improved abrasion resistance and tensile strength.
Standard lengths of 100 feet.
Tech Data:
Construction: Black, SBR/EPDM blend for both tube and cover.
Reinforcement: High tensile tire cord plies
Safety Factor: 3:1
Working Pressure: 150 PSI
Temperature: -40F to 180F
Marking: WATER DISCHARGE HOSE 2-PLY XXX PSI WP
Hose - Water - Heavy Duty Soft Wall 4-ply High Discharge - Up to 250 PSI
Similar to a lay-flat hose but with improved abrasion resistance and tensile strength.
Standard lengths of 100 feet.
Tech Data:
Construction: Black, SBR/EPDM blend for both tube and cover.
Reinforcement: High tensile tire cord plies
Safety Factor: 3:1
Working Pressure: 250 PSI
Temperature: -40F to 180F
Marking: WATER DISCHARGE HOSE 4-PLY XXX PSI WP
