Silica InSilMax Slit & Woven Gasket Seal Insulating Tapes: High Temperature,  Heat, Flame and Fire Resistant


1900°F / 1037°C Continuous Exposure: Higher Intermittent

InSilMax™ is an extreme high temperature, heat and flame resistant silica tape, and is an excellent alternative to asbestos and ceramic based textiles. This high temperature tape can be used to wrap and protect wires, cables, hoses, pipes and tubes, and also provides energy savings and personnel protection.

Silica InSIlMax tapes are used extensively as a gasket tape in many industrial and commercial applications on duct flanges in order to meet fireproof ratings as the tape does not burn under flame exposure.

Available as:

  • Slit tape.  0.090" thick - Standard widths of 1" to 6".  Any custom width.
    Catalog Page

  • Slit, folded & stitched tape.  1/8, 3/16 and 1/4" thickness. Standard widths of 1" to 8".  Any custom width.
    Catalog Page

  • Slit tape with PSA.  0.030" and 0.054" thickness, 1", 1 1/2" and 2" widths.
    Catalog Page

  • Woven tape.  Standard widths of 1" to 4".  1/16", 1/8" and 1/4" thickness
    Catalog Page

  • Woven special thin tape.  Standard width of 1 1/2".  0.015" thickness
    Catalog Page

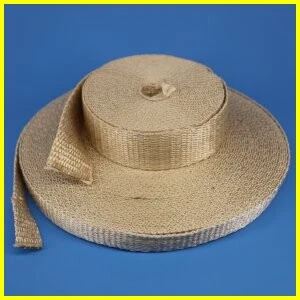

Silica Woven Gasket Tape High Temperature Heat Flame Fire Resistant





Slit: 0.090" ThickSlit Folded & Stitched: 1/8", 3/16", 1/4" ThickSlit with PSA: 0.030" & 0.054" ThickWoven: 1/16", 1/8" and 1/4" ThickWoven Special Thin: 0.015" Thick
