50N 67BT / 58N 59N 66N 67N 69N 78N 79N Equivalent Silicone Rubber Electrical Insulation Tape
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShieldä 50N 67BT non reinforced and 58N 59N 66N, 67N, 69N, 78N, 79N reinforced equivalent silicone rubber tapes meet MIL-I-46852 / MIL-I-22444 and commercial specification A-A-59163 and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
These equivalent tape have no adhesive, but sticks to itself (self-fuses or self-amalgamating) when stretched and wrapped onto itself. The tapes starts fusing as soon as it is over-wrapped on itself, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

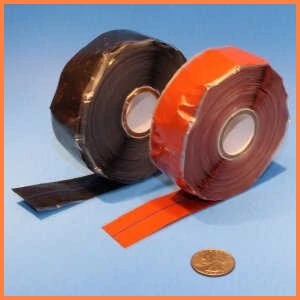

These tapes are available in red and black.
50N, 67BT / 58N 59N 66N, 67N, 69N, 78N, 79N equivalent tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the back-shell clamp.
Meets the following specifications:
· 66N - NSN 5970-14-467-8824
· 67N - NSN 5970-14-474-7041
Non reinforced:
50N 5437401306S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP50-013-06) TBL (blue)
67BT 5437501936S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILT67BT-019-00 ABS5334A01T (.020 Type II)
Reinforced:
66N 5436101914S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP66-019-16) ABS5334 (.012)
67N 5436601903S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP67-019-00) ABS5334A01B
58N 5437201314S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP58-013-16) ASNA51072501
59N 5437201303S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP59-013-00) ASNA51072501B
78N 5436702514S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP78-025-16) ASNA5107
79N 5436802503S 60 rolls per pack / 15 rolls per box 15m/50ft* per roll
(Equivalent to FMC-SILTAP79-025-00) ASNA5107-2503 B
* the standard equivalent tape is 36ft per roll. 15m/50ft length rolls are available at full pack quantity.
