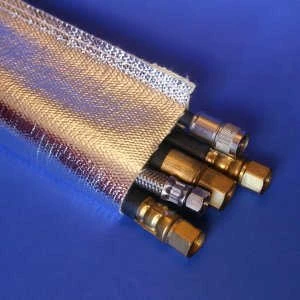

Aluminum Foil or Film Coated Fiberglass Heat Reflective Sewn Sleeve
High Temperature, Heat & Flame Resistant, Radiant Heat Reflective Protection for Wire, Cables, Hoses and Tubing
450°F / 232°C Continuous Exposure / 1000°F / 537°C Peak Exposure
Available in two versions: Aluminum Foil coated fiberglass base material - or Aluminized PET Film coated fiberglass base material.
Aluminum Foil version is suitable for static applications with little to none movement after installation. Aluminum Film version is suitable for repetitive flexing, movement or high vibration installations.
These sewn sleeves can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.
For the aluminum foil version - a layer of highly polished aluminum foil is calendared under high pressure and with an adhesive onto a high temperature fiberglass base fabric. That fabric is slit into an tape, which is then sewn into a sleeve.
For the aluminum foil version - a layer of highly polished aluminum foil is calendared under high pressure and with an adhesive onto a high temperature fiberglass base fabric. That fabric is slit into an tape, which is then sewn into a sleeve.
For the aluminum film version - an aluminized PET film is laminated onto a high temperature fiberglass base fabric - which is then slit into a tape - and then sewn into a sleeve.
A version of these sleeves with a hook and loop closure is available, to result in a removable sleeve.
This aluminized sleeve reflects more than 95% of the radiant energy that hits its surface, keeping the underlying cables, hoses and wires cool. Available in sizes from 1/2" through 12" ID. Larger sizes are available under special order. Two weights of the aluminum foil fabric are used to make these sleeves: a 21oz/square yard and a 35oz/square yard. The 21oz material has better aluminum adhesion for applications requiring some flexing. For the aluminized PET version, the fabric weight is 20oz/square yard.
A four layer aluminum foil coated fabric is available. This fabric is more robust, but quite stiffer than a single layer aluminum coated fabric.
The reduced continuous temperature limit of this material is due to the adhesive used to help bond the aluminum foil layer to the fabric. Notwithstanding the temperature limit, intense radiant heat can be reflected while still under the continuous temperature limit.
To buy this product now on-line, use the shopping cart product selector below. Any Problems?... Call 610-906-3549 for immediate help - Then press 1 for the Order Desk or 2 for Technical Support.
Heat Reflective Sleeve
FlameShield Aluminum Foil Coated Fiberglass Sewn Sleeve. 21oz and 35oz Fabrics.
Heat reflecting to protect wires, cable and hoses. Suited for Static non-repetitive flexing applications.
Heat reflecting to protect wires, cable and hoses. Suited for Static non-repetitive flexing applications.
$ 0.00
Add
Heat Reflective Sleeve
FlameShield Aluminized PET Film Coated Fiberglass Sewn Sleeve. 20oz fabric weight.
Heat reflecting to protect wires, cable and hoses. Suited for Static non-repetitive flexing applications.
Heat reflecting to protect wires, cable and hoses. Suited for Static non-repetitive flexing applications.
$ 0.00
Add
Part Numbers:
S-FG-ALF-SWN-0.500-M013-08-21, S-FG-ALF-SWN-0.750-M019-12-21, S-FG-ALF-SWN-1.000-M025-16-21, S-FG-ALF-SWN-1.250-M032-20-21, S-FG-ALF-SWN-1.500-M038-24-21, S-FG-ALF-SWN-1.750-M044-28-21, S-FG-ALF-SWN-2.000-M051-32-21, S-FG-ALF-SWN-2.500-M064-40-21, S-FG-ALF-SWN-3.000-M076-48-21, S-FG-ALF-SWN-3.500-M089-56-21, S-FG-ALF-SWN-4.000-M102-64-21
S-FG-ALF-SWN-0.500-M013-08-35, S-FG-ALF-SWN-0.750-M019-12-35, S-FG-ALF-SWN-1.000-M025-16-35, S-FG-ALF-SWN-1.250-M032-20-35, S-FG-ALF-SWN-1.500-M038-24-35, S-FG-ALF-SWN-1.750-M044-28-35, S-FG-ALF-SWN-2.000-M051-32-35, S-FG-ALF-SWN-2.500-M064-40-35, S-FG-ALF-SWN-3.000-M076-48-35, S-FG-ALF-SWN-3.500-M089-56-35, S-FG-ALF-SWN-4.000-M102-64-35
S-FG-ALM-SWN-0.500-M013-08, S-FG-ALM-SWN-0.750-M019-12, S-FG-ALM-SWN-1.000-M025-16, S-FG-ALM-SWN-1.250-M032-20, S-FG-ALM-SWN-1.500-M038-24, S-FG-ALM-SWN-1.750-M044-28, S-FG-ALM-SWN-2.000-M051-32, S-FG-ALM-SWN-2.500-M064-40, S-FG-ALM-SWN-3.000-M076-48, S-FG-ALM-SWN-3.500-M089-56, S-FG-ALM-SWN-4.000-M102-64
