Removable Blankets and Insulation for Engine & Generator Exhaust System Components
Exhaust System Insulaltion for Mufflers & Silencers, Turbo-Chargers, Manifolds, Flanges & Pipes
Meets UL2200 Requirements

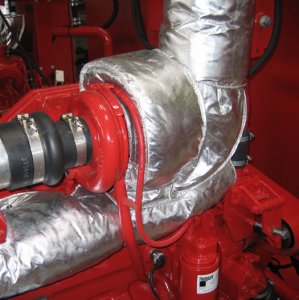

FlameShield™ Custom fabricated removable insulation blanket systems for engine and generator exhaust components such as manifolds, mufflers, turbo-chargers and pipe feature high temperature capability, reduction of thermal radiation and convection within the engine room and also sound/noise level reduction. Installed on marine powerplants & generators and stationary backup power systems for industrial, commercial and municipal facilities.
A thick needled fiberglass (suitable for gasoline or diesel piston engines) or silica (suitable for natural gas piston or turbine engines) insulation is mechanically supported by a stainless steel or inconel mesh and an outer fabric of either silicone rubber coated fiberglass, aluminized fiberglass or silica..
To start the quote process, please download the drawing set pdf at link below or at the bottom of this web page and complete the dimensions of your installation. You can also send us photos, CAD drawings, tables of dimensions, etc. Photos really help to confirm your engine configuration and to determine if any components are located differently than the standard layout.
Turnaround time for quotes is typically 24 to 48 hours depending on complexity. Please contact our technical support if you need any further information or have questions. Fabrication time is typically 8 to 15 business days depending on scope of the work - an expedite service is available.
Information on OSHA and UL2200 Safe Touch Temperatures can be found here.
We have drawing sets on file for most standard engine models of the brand names below:
Caterpillar (43 models), Cummins (37 models), Daewoo (9 models), Daimler Chrysler (3 models), Detroit Diesel (32 models), Deutz (35 models), EMD (10 models), Ford (14 models), GM (4 models), Hercules (9 models), Isuzu (9 models), Iveco (12 models), John Deere (35 models), Kubota (10 models), Lister Petter (6 models), Lombardini (3 models), Mercedes (2 models), Merlin (6 models), Mitsubishi (25 models), Nissan, Onan (46 models), Perkins (10 models), Pielstick, Spectrum (18 models), Stork, Superior, VM Motori (4 models), Volvo (9 models), Wartsila (2 models), Waukesha (7 models), Yanmar (3 models)
Use the templates below to record dimensional data and then fax or email us a scan for a quote....
