Oven and Stove Door Sealing Gaskets - High Temperature Heat Resistant Fiberglass
Pyrolytic Self Cleaning Oven Door Gasket Seals
For temperatures up to 1200F
These gaskets are heat treated which results in an extremely clean surface which does not shed fibers. These gaskets are commonly used for pyrolytic self-cleaning ovens and stoves. Three versions are available:

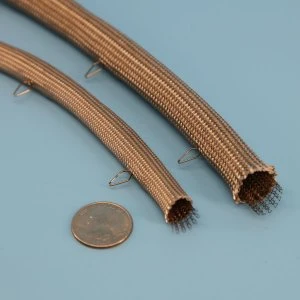

· Hollow fiberglass rope with a hollow metal mesh core and clip mounting - offering high compression,

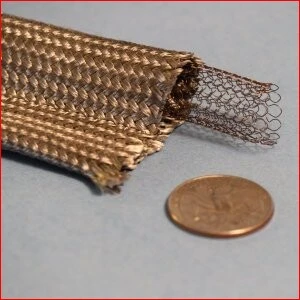

low compression set and excellent push-back. (photo on right)· Tadpole with a hollow metal mesh core - offering high compression, low compression set

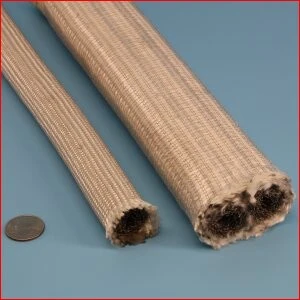

and excellent push-back. (photo below right)· Solid metal mesh rope with heat cleaned fiberglass overbraid. Excellent push back. (photo below left)End finishing: Typically a hole is made in the metal work where the end of the gasket can be inserted, thereby restraining movement and preventing fray. No further finihing is usually required or necessary. If not using a termination hole, users can finish the ends if desired by using a hog ring, tie wire or metal zip tie.
Self Cleaning Oven Replacement Door Gasket - Original OEM Manufacture Fiberglass with Mounting Clips: High Temperature & Heat Resistant
Cut to length parts: (GE Part WB41T10003 $43.00: Maytag/Whirlpool W10162384 $27.87)
Fits GE, Maytag, Whirlpool, Moffat, Hotpoint, Kenmore, Profile, & Westinghouse models listed below. Measure gasket length required or remove old gasket and measure.
This replacement gasket is designed for self cleaning ovens.
The gasket may be used on the frame of the oven or on the door of the oven, depending on the model and manufacturer.
The old gasket may be removed by pulling the gasket out at the mounting clip locations. The replacement gasket simply clips into place using the same mounting hole locations as the original gasket. The ends of the gasket are inserted into the holding holes usually at the bottom of the door or frame. A small long object such as a pencil or screwdriver can be used to stuff the gasket ends into the holding holes. Remove the old gasket and measure the total length, or measure the circumference of the gasket location on the frame or oven door, and allow for the extra length at the bottom for the amount of the gasket inside the holding holes.
If during installation an extra clip is present and no mounting hole exists for it, then simply cut-off the clip with side-cutters, or remove the clip from the gasket.
The gasket rope OD is available in two sizes: 0.42"/10.7mm OD and 0.57" / 14.4mm. Clip spacing is 3".
 |  |
Gasket Rope Mounted on Oven Door | Gasket Rope Mounted on Door Frame |
Fits ovens model numbers: J2S968BH1BB , J2S968BH2BB , J2S968BH3BB , J2S968BH4BB , J2S968BH5BB , J2S968BH6BB , J2S968KH1CC , J2S968KH2CC , J2S968KH3CC , J2S968KH4CC , J2S968KH5CC , J2S968KH6CC , J2S968SH1SS , J2S968SH2SS , J2S968SH3SS , J2S968SH4SS , J2S968SH5SS , J2S968SH6SS , J2S968TH1WW , J2S968TH2WW , J2S968TH3WW , J2S968TH4WW , J2S968TH5WW , J2S968TH6WW , JCS968BF1BB , JCS968BF2BB , JCS968BF3BB , JCS968BF4BB , JCS968BF5BB , JCS968BF6BB , JCS968KF1CC , JCS968KF2CC , JCS968KF3CC , JCS968KF4CC , JCS968KF5CC , JCS968KF6CC , JCS968SF1SS , JCS968SF2SS , JCS968SF3SS , JCS968SF4SS , JCS968SF5SS , JCS968SF6SS , JCS968TF1WW , JCS968TF2WW , JCS968TF3WW , JCS968TF4WW , JCS968TF5WW , JCS968TF6WW , JCSP42SK1SS , JCSP47BF1BB , JCSP47BF2BB , JCSP47BF3BB , JCSP47BF4BB , JCSP47BF5BB , JCSP47BF6BB , JCSP47SK1SS , JCSP47WF1WW , JCSP47WF2WW , JCSP47WF3WW , JCSP47WF4WW , JCSP47WF5WW , JCSP47WF6WW , JCT915BF1BB , JCT915BF2BB , JCT915BF3BB , JCT915BF4BB , JCT915BF5BB , JCT915BF6BB , JCT915BF7BB , JCT915BF8BB , JCT915SF1SS , JCT915SF2SS , JCT915SF3SS , JCT915SK1SS , JCT915SK2SS , JCT915SK3SS , JCT915SK4SS , JCT915SK5SS , JCT915WF1WW , JCT915WF2WW , JCT915WF3WW , JCT915WF4WW , JCT915WF5WW , JCT915WF6WW , JCT915WF7WW , JCT915WF8WW , JD900BK1BB , JD900CK1CC , JD900WK1WW , JD968BF1BB , JD968BF2BB , JD968BF3BB , JD968BF4BB , JD968BF5BB , JD968BF6BB , JD968BK1BB , JD968KF1CC , JD968KF2CC , JD968KF3CC , JD968KF4CC , JD968KF5CC , JD968KF6CC , JD968KK1CC , JD968SF1SS , JD968SF2SS , JD968SF3SS , JD968SF4SS , JD968SF5SS , JD968SF6SS , JD968SK1SS , JD968TF1WW , JD968TF2WW , JD968TF3WW , JD968TF4WW , JD968TF5WW , JD968TF6WW , JD968TK1WW , JDP47BF1BB , JDP47BF2BB , JDP47BF3BB , JDP47BF4BB , JDP47BF5BB , JDP47BF6BB , JDP47CF1CC , JDP47CF2CC , JDP47CF3CC , JDP47CF4CC , JDP47CF5CC , JDP47CF6CC , JDP47WF1WW , JDP47WF2WW , JDP47WF3WW , JDP47WF4WW , JDP47WF5WW , JDP47WF6WW , JGS968BH1BB , JGS968BH2BB , JGS968BH3BB , JGS968BH4BB , JGS968BH5BB , JGS968BH6BB , JGS968KH1CC , JGS968KH2CC , JGS968KH3CC , JGS968KH4CC , JGS968KH5CC , JGS968KH6CC , JGS968SH1SS , JGS968SH2SS , JGS968SH3SS , JGS968SH4SS , JGS968SH5SS , JGS968SH6SS , JGS968TH1WW , JGS968TH2WW , JGS968TH3WW , JGS968TH4WW , JGS968TH5WW , JGS968TH6WW , JGSP48BH1BB , JGSP48BH2BB , JGSP48BH3BB , JGSP48BH4BB , JGSP48BH5BB , JGSP48BH6BB , JGSP48CH1CC , JGSP48CH2CC , JGSP48CH3CC , JGSP48CH4CC , JGSP48CH5CC , JGSP48CH6CC , JGSP48SH1SS , JGSP48SH2SS , JGSP48SH3SS , JGSP48SH4SS , JGSP48WH1WW , JGSP48WH2WW , JGSP48WH3WW , JGSP48WH4WW , JGSP48WH5WW , JGSP48WH6WW , JS900BK1BB , JS900CK1CC , JS900SK1SS , JS900WK1WW , JS905SK1SS , JS968BF1BB , JS968BF2BB , JS968BF3BB , JS968BF4BB , JS968BF5BB , JS968BF6BB , JS968KF1CC , JS968KF2CC , JS968KF3CC , JS968KF4CC , JS968KF5CC , JS968KF6CC , JS968SF1SS , JS968SF2SS , JS968SF3SS , JS968SF4SS , JS968SF5SS , JS968SF6SS , JS968SK1SS , JS968TF1WW , JS968TF2WW , JS968TF3WW , JS968TF4WW , JS968TF5WW , JS968TF6WW , JSP42BK1BB , JSP42BK2BB , JSP42CK1CC , JSP42CK2CC , JSP42SK1SS , JSP42SK2SS , JSP42WK1WW , JSP42WK2WW , JSP47BF1BB , JSP47BF2BB , JSP47BF3BB , JSP47BF4BB , JSP47BF5BB , JSP47BF6BB , JSP47CF1CC , JSP47CF2CC , JSP47CF3CC , JSP47CF4CC , JSP47CF5CC , JSP47CF6CC , JSP47SH1SS , JSP47SH2SS , JSP47SH3SS , JSP47WF1WW , JSP47WF2WW , JSP47WF3WW , JSP47WF4WW , JSP47WF5WW , JSP47WF6WW , JSP57BF1BB , JSP57BF2BB , JSP57BF3BB , JSP57CF1CC , JSP57CF2CC , JSP57CF3CC , JSP57WF1WW , JSP57WF2WW , JSP57WF3WW , JT912BF1BB , JT912BF2BB , JT912BF3BB , JT912BF4BB , JT912BF5BB , JT912BF6BB , JT912BF7BB , JT912BF8BB , JT912CF1CC , JT912CF2CC , JT912CF3CC , JT912CF4CC , JT912CF5CC , JT912CF6CC , JT912CF7CC , JT912CF8CC , JT912SF1SS , JT912SF2SS , JT912SF3SS , JT912SK1SS , JT912SK2SS , JT912SK3SS , JT912SK4SS , JT912SK5SS , JT912WF1WW , JT912WF2WW , JT912WF3WW , JT912WF4WW , JT912WF5WW , JT912WF6WW , JT912WF7WW , JT912WF8WW , JT915BF1BB , JT915BF2BB , JT915BF3BB , JT915BF4BB , JT915BF5BB , JT915BF6BB , JT915BF7BB , JT915BF8BB , JT915CF1CC , JT915CF2CC , JT915CF3CC , JT915CF4CC , JT915CF5CC , JT915CF6CC , JT915CF7CC , JT915CF8CC , JT915SF1SS , JT915SF2SS , JT915SF3SS , JT915SK1SS , JT915SK2SS , JT915SK3SS , JT915SK4SS , JT915SK5SS , JT915WF1WW , JT915WF2WW , JT915WF3WW , JT915WF4WW , JT915WF5WW , JT915WF6WW , JT915WF7WW , JT915WF8WW , JT952BF1BB , JT952BF2BB , JT952BF3BB , JT952BF4BB , JT952BF5BB , JT952BF6BB , JT952BF7BB , JT952BF8BB , JT952CF1CC , JT952CF2CC , JT952CF3CC , JT952CF4CC , JT952CF5CC , JT952CF6CC , JT952CF7CC , JT952CF8CC , JT952SF1SS , JT952SF2SS , JT952SF3SS , JT952SF4SS , JT952SK1SS , JT952SK2SS , JT952SK3SS , JT952SK4SS , JT952WF1WW , JT952WF2WW , JT952WF3WW , JT952WF4WW , JT952WF5WW , JT952WF6WW , JT952WF7WW , JT952WF8WW , JT955BF1BB , JT955BF2BB , JT955BF3BB , JT955BF4BB , JT955BF5BB , JT955BF6BB , JT955BF7BB , JT955BF8BB , JT955CF1CC , JT955CF2CC , JT955CF3CC , JT955CF4CC , JT955CF5CC , JT955CF6CC , JT955CF7CC , JT955CF8CC , JT955SF1SS , JT955SF2SS , JT955SF3SS , JT955SF4SS , JT955SK1SS , JT955SK2SS , JT955SK3SS , JT955SK4SS , JT955WF1WW , JT955WF2WW , JT955WF3WW , JT955WF4WW , JT955WF5WW , JT955WF6WW , JT955WF7WW , JT955WF8WW , JT965BF1BB , JT965BF2BB , JT965BF3BB , JT965BF4BB , JT965BF5BB , JT965BF6BB , JT965BF7BB , JT965CF1CC , JT965CF2CC , JT965CF3CC , JT965CF4CC , JT965CF5CC , JT965CF6CC , JT965CF7CC , JT965SF1SS , JT965SF2SS , JT965SF3SS , JT965SF4SS , JT965SK1SS , JT965SK2SS , JT965SK3SS , JT965SK4SS , JT965WF1WW , JT965WF2WW , JT965WF3WW , JT965WF4WW , JT965WF5WW , JT965WF6WW , JT965WF7WW , JT980BH1BB , JT980BH1BB , JT980BH2BB , JT980BH2BB , JT980BH3BB , JT980BH3BB , JT980CH1CC , JT980CH1CC , JT980SH1SS , JT980SH1SS , JT980SK1SS , JT980SK1SS , JT980SK2SS , JT980SK2SS , JT980SK3SS , JT980SK3SS , JT980WH1WW , JT980WH1WW , JT980WH2WW , JT980WH2WW , JT980WH3WW , JT980WH3WW , JTP20BF1BB , JTP20BF2BB , JTP20BF3BB , JTP20BF5BB , JTP20BF6BB , JTP20BF7BB , JTP20CF1CC , JTP20CF2CC , JTP20CF3CC , JTP20CF5CC , JTP20CF6CC , JTP20CF7CC , JTP20SF1SS , JTP20SF2SS , JTP20SF3SS , JTP20SF4SS , JTP20SF5SS , JTP20WF1WW , JTP20WF2WW , JTP20WF3WW , JTP20WF5WW , JTP20WF6WW , JTP20WF7WW , JTP25SH1SS , JTP25SH2SS , JTP25SH3SS , JTP25SH4SS , JTP25SH5SS , JTP25SH6SS , JTP28BF1BB , JTP28BF2BB , JTP28BF3BB , JTP28BF4BB , JTP28BF5BB , JTP28BF6BB , JTP28BF7BB , JTP28CF1CC , JTP28CF2CC , JTP28CF3CC , JTP28CF4CC , JTP28CF5CC , JTP28CF6CC , JTP28CF7CC , JTP28SF1SS , JTP28SF2SS , JTP28SF3SS , JTP28SF4SS , JTP28SK1SS , JTP28SK2SS , JTP28SK3SS , JTP28WF1WW , JTP28WF2WW , JTP28WF3WW , JTP28WF4WW , JTP28WF5WW , JTP28WF6WW , JTP28WF7WW , JTP48BF1BB , JTP48BF2BB , JTP48BF3BB , JTP48BF4BB , JTP48BF5BB , JTP48BF6BB , JTP48BF7BB , JTP48CF1CC , JTP48CF2CC , JTP48CF3CC , JTP48CF4CC , JTP48CF5CC , JTP48CF6CC , JTP48CF7CC , JTP48SF1SS , JTP48SF2SS , JTP48SF3SS , JTP48SF4SS , JTP48SF5SS , JTP48WF1WW , JTP48WF2WW , JTP48WF3WW , JTP48WF4WW , JTP48WF5WW , JTP48WF6WW , JTP48WF7WW , JTP50SH1SS , JTP50SH2SS , JTP50SH3SS , JTP50SH4SS , JTP50SH5SS , JTP50SH6SS , JTP86BF1BB , JTP86BF2BB , JTP86BF3BB , JTP86BF4BB , JTP86BF5BB , JTP86BF6BB , JTP86BF7BB , JTP86CF1CC , JTP86CF2CC , JTP86CF3CC , JTP86CF4CC , JTP86CF5CC , JTP86CF6CC , JTP86CF7CC , JTP86SF1SS , JTP86SF2SS , JTP86SF3SS , JTP86SH1SS , JTP86SH2SS , JTP86SH3SS , JTP86SH4SS , JTP86SH5SS , JTP86SH6SS , JTP86WF1WW , JTP86WF2WW , JTP86WF3WW , JTP86WF4WW , JTP86WF5WW , JTP86WF6WW , JTP86WF7WW , ZET3058BH1BB , ZET3058BH1BB , ZET3058BH2BB , ZET3058BH2BB , ZET3058BH3BB , ZET3058BH3BB , ZET3058BH4BB , ZET3058BH4BB , ZET3058BH5BB , ZET3058BH5BB , ZET3058SH1SS , ZET3058SH1SS , ZET3058SH2SS , ZET3058SH2SS , ZET3058SH3SS , ZET3058SH3SS , ZET3058SH4SS , ZET3058SH4SS , ZET3058SH5SS , ZET3058SH5SS , ZET3058WH1WW , ZET3058WH1WW , ZET3058WH2WW , ZET3058WH2WW , ZET3058WH3WW , ZET3058WH3WW , ZET938BF1BB , ZET938BF2BB , ZET938BF3BB , ZET938BF4BB , ZET938BF5BB , ZET938BF6BB , ZET938SF1SS , ZET938SF2SS , ZET938SF3SS , ZET938SF4SS , ZET938SF5SS , ZET938SF6SS , ZET938WF1WW , ZET938WF2WW , ZET938WF3WW , ZET938WF4WW , ZET938WF5WW , ZET958BF1BB , ZET958BF2BB , ZET958BF3BB , ZET958BF4BB , ZET958BF5BB , ZET958BF6BB , ZET958BF7BB , ZET958SF1SS , ZET958SF2SS , ZET958SF3SS , ZET958SF4SS , ZET958SF5SS , ZET958SF6SS , ZET958SF7SS , ZET958WF1WW , ZET958WF2WW , ZET958WF3WW , ZET958WF4WW , ZET958WF5WW , ZET958WF6WW ,
